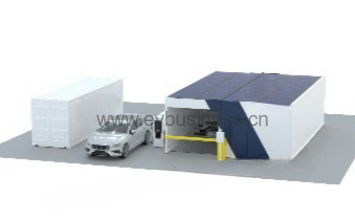

Battery swapping station for passenger cars
Battery swapping station for passenger cars

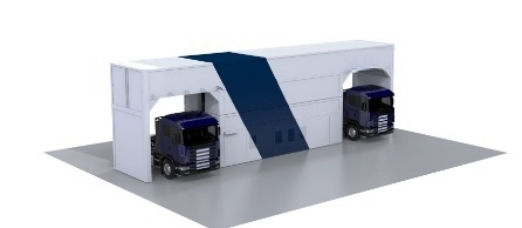

Battery swapping station for trucks
Battery swapping station for trucks
 EV Chargers and Battery Swapping Stations
描述
描述

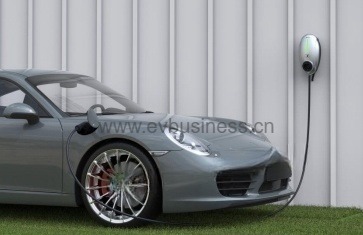

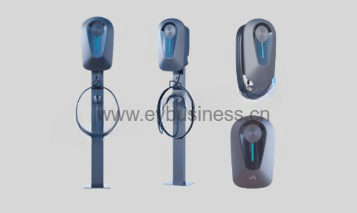

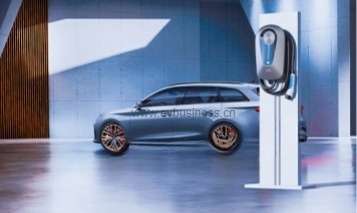

EV Charger code: EVFCGRA1
Power and current: 22kW 32A / 11kW 16A
Input Voltage: AC 323V-437 V
Connector type: Type 2
Operating frequency: 47 - 63Hz
IP rating: IP55
Operating temperature:  - 40°C - + 55°C
Relative humidity: 5 - 95%, without condensation
Maximum altitude: 4000M
Homologation Certificate: CE, CB, UKCA, TR25, CQC
描述
描述

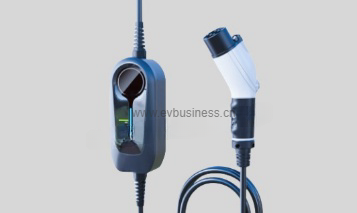

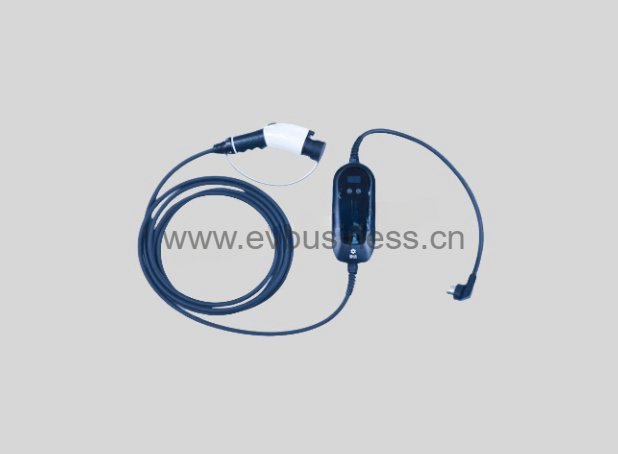

EV Charger code: EVPCGRA2
(This is one Portable EV Charger)
Power and current: 3.5kW 16A
Input Voltage: AC 230V
Connector type: Type 2
Operating frequency: 50Hz
IP rating: IP55
Operating temperature:   - 20°C - + 55°C
Relative humidity: 5 - 95%, without condensation
Maximum altitude: 4000M
Homologation Certificate: CE, CQC
描述
描述

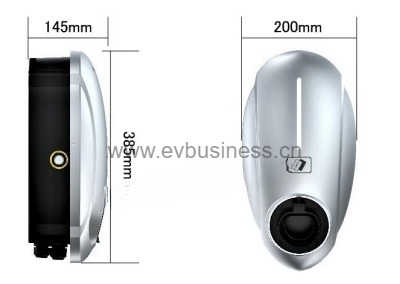

EV Charger code: EVFCGRB1
Size: W200*H385*D145 (mm)
Power and current: 7KW 32A
Input Voltage: AC 230V
Connector type: Type 2
Operating frequency: 50Hz/60Hz
IP rating: IP55
Operating temperature: - 30°C - + 55°C
Relative humidity: 5 - 95%, without condensation
Maximum altitude: 2000M
Homologation Certificate: CE, TUV, TR25, RCM, UKCA
描述
描述

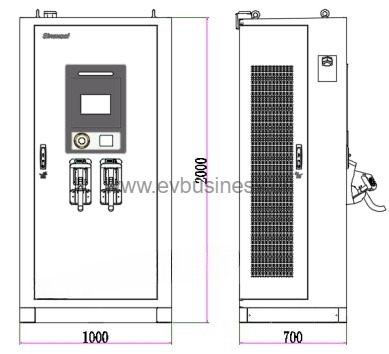

EV Charger code: EVFCGRB2
Size: 1000*700*2000(mm)
Power and current: 160KW 200A
Input Voltage: AC 400V +/-10%
Operating frequency:  50Hz/60Hz
IP rating: IP55
Operating temperature: - 25°C - + 50°C
Relative humidity:5 - 95%, without condensation
Maximum altitude: 2000M
Homologation Certificate: CE, TUV, TR25, RCM, UKCA
Communication Protocl: OCPP1.6J
描述
描述

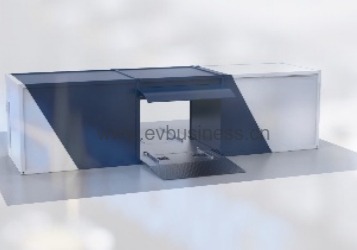

Battery swapping station code: EVBSSA1/A2
Swapping mode: Fully Automatic
Swapping time ≤ 2 min (in China)
Battery quantity: 20 pieces
Operating temperature: - 30°C - + 55°C
Power demand: 750KVA
Covering an area: 12.3m * 3.6m * 3.45m (LWH)
Service capacity: 480 times/day
Infrastructure requirements: with hardened ground & ground bearing capacity ≤ 600kg/m² Ground levelness ± 10mm
